Stuart Turner Showermate Universal 2.6 Bar Universal Negative Pump 46534

Designed and manufactured to the highest standards, the Stuart Turner Monsoon range is constructed from precision machined brass impellers and brass body stampings.

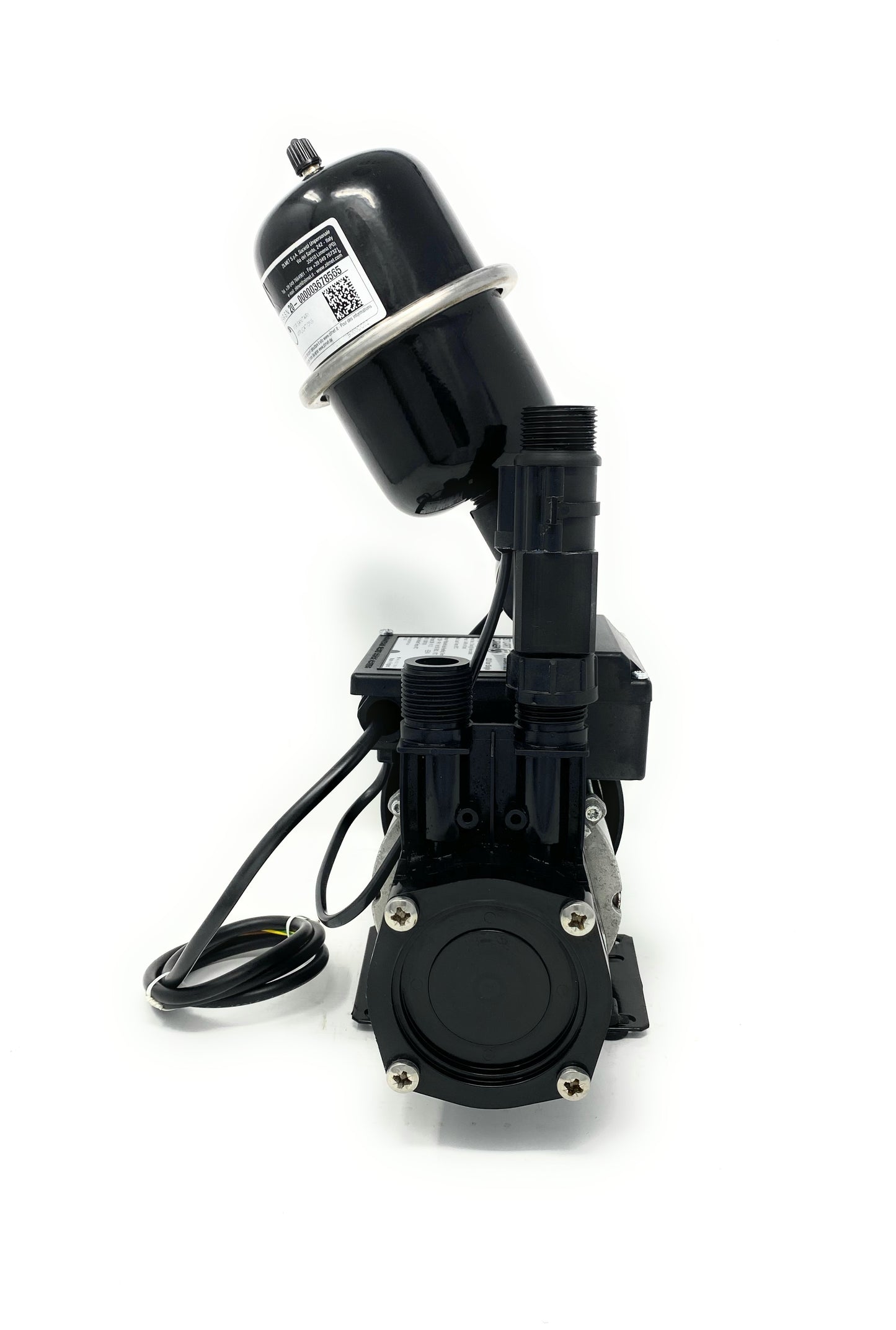

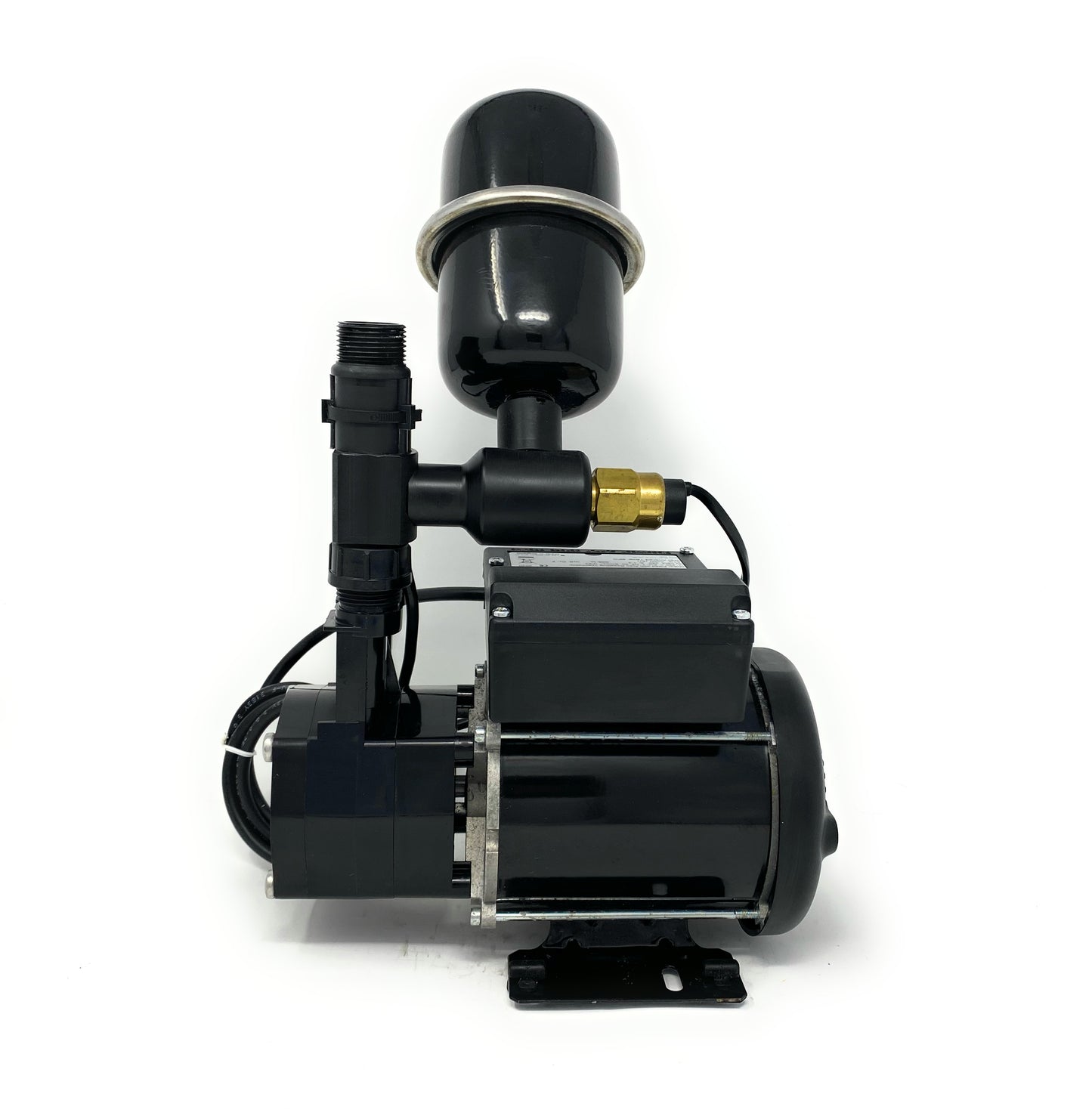

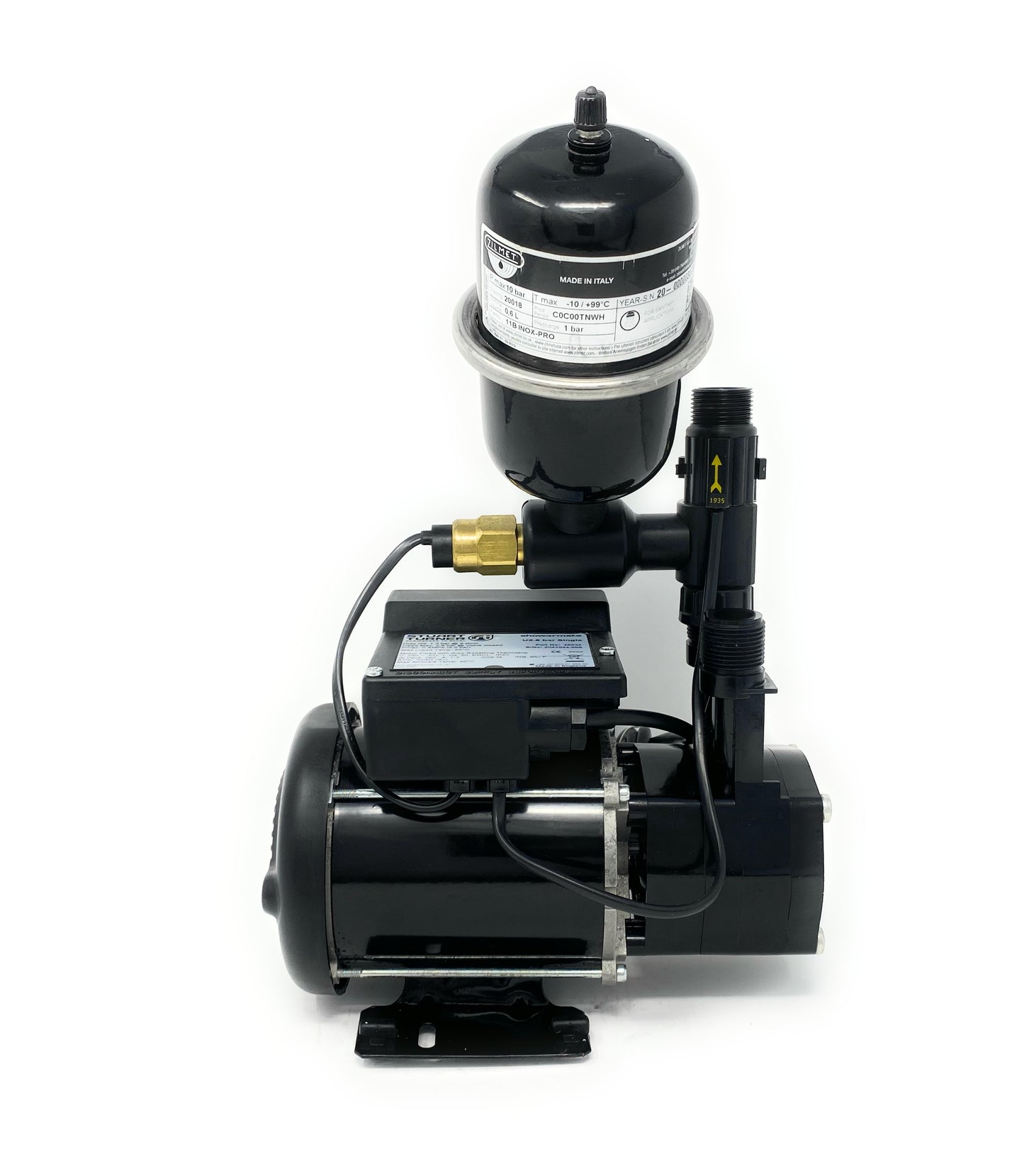

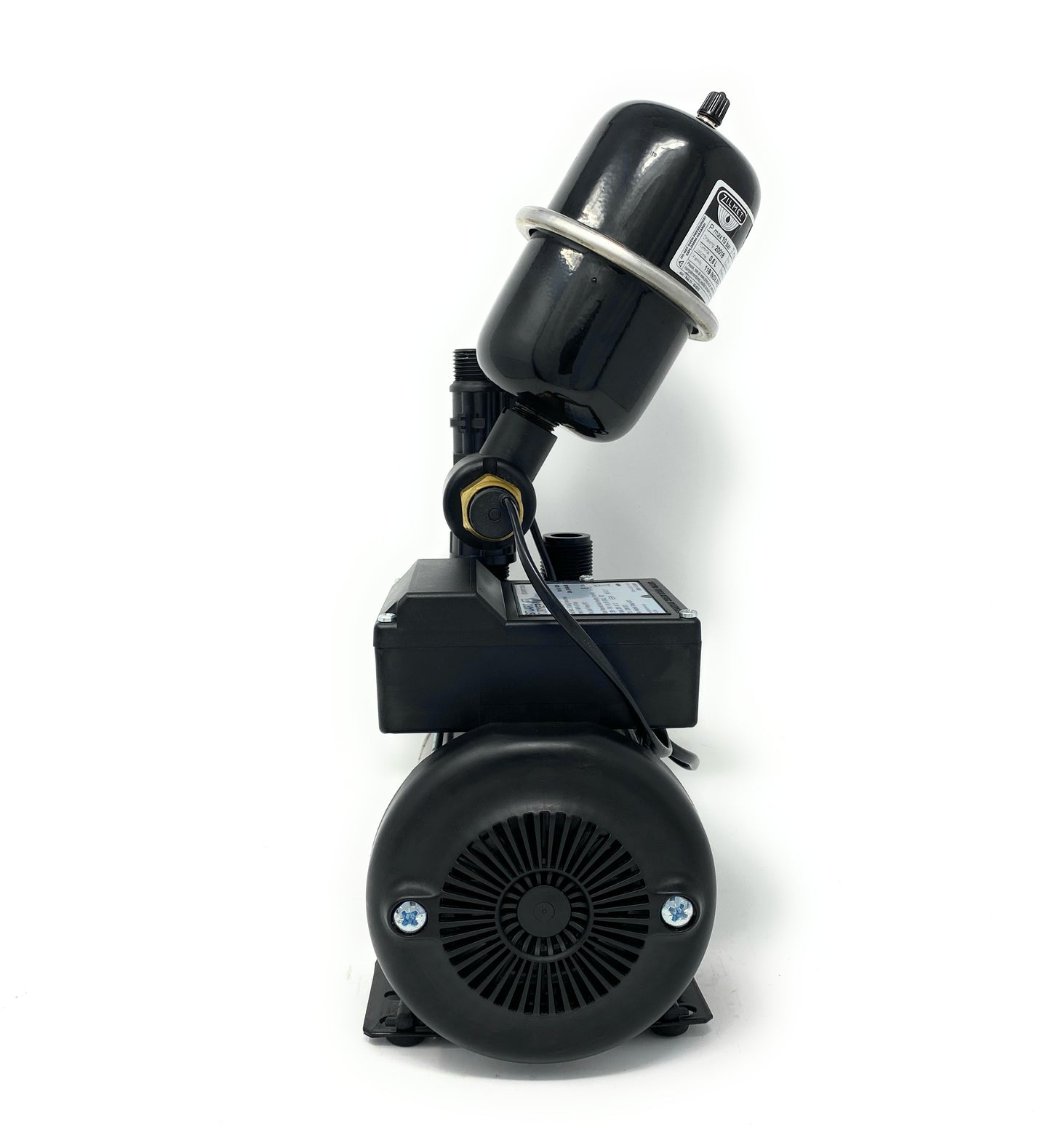

The Stuart Turner Monsoon 46534 is a universal head shower booster pump used to increase water pressure to a gravity fed hot water system.

It can be fitted in a positive or negative head situation so no worrying about which to have (for example the water tank can be in the loft or alongside the pump 0m above it and it will work effectively, with no pulsing).

PelhamPumps supply these refurbished pumps fully serviced and tested, complete with new non return valves ready to fit.

Will it fit?

Stuart turner produced similar style and size showermate pumps from around 2008 to 2021- if your pump has a black motor and is 2.6 bar, then this will be a direct replacement. It will also replace the older 2.6 bar pumps with the 1 smaller black air tanks attached.

Complete with:

Pump

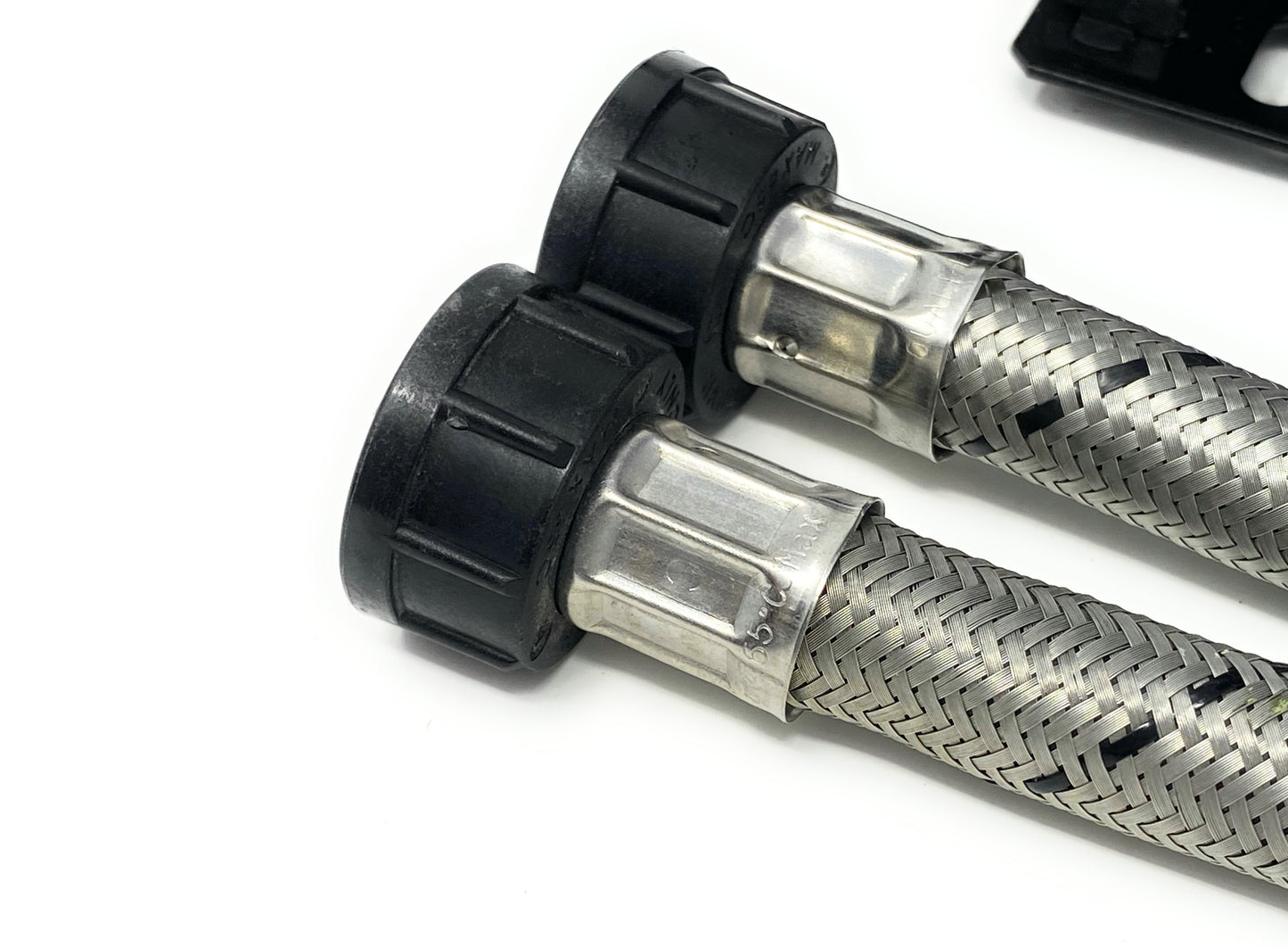

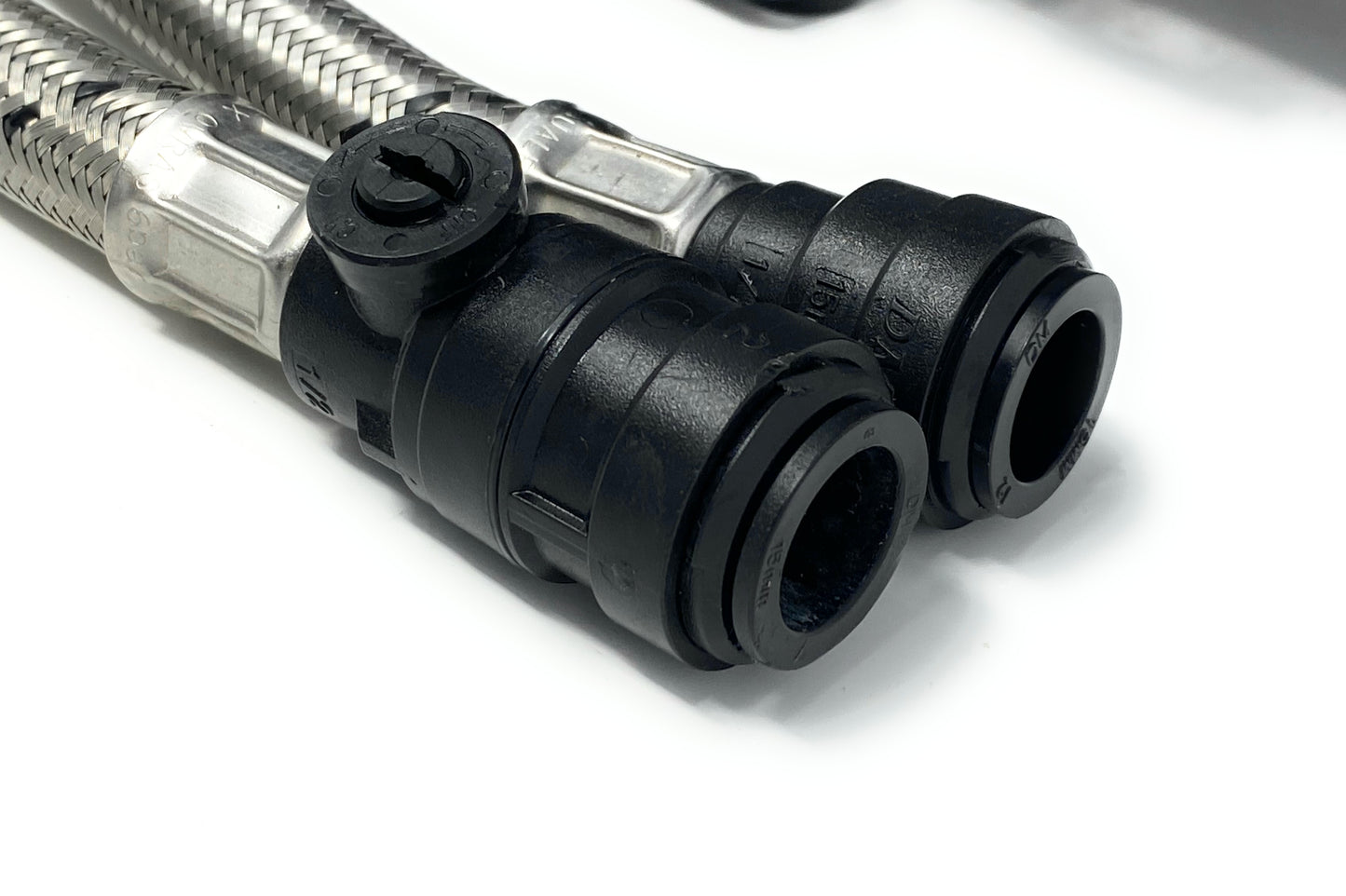

2 x Genuine Stuart Turner push-fit 15mm flexible hoses with isolation valves

Rubber feet for vibration-free noise isolation

User manual

60 day hassle-free warranty

Product Details

Stuart Turner 46534 Details

The Showermate Universal 2.6 bar single pump is designed to improve water supplies to single taps or to pump blended water from a shower mixer in negative head plumbing systems.

Stuart Turner Showermate pumps

• Fully automatic
• Extremely system friendly
• Durable
• Plastic bodied construction
• Fully WRAS approved and CE compliant
• Supplied complete with 15 mm flexible hoses and built in isolating valves for the inlet hoses only
• Offer more power and efficiency than ever before
• Supplied pre-wired with 1.5 metre cable and anti-vibration feet

Technical Specification

The Pump

• Flow switch sensitivity: approx. 0.8 l/min
• Max.inlet head: 8 metres
• Plumbing connection: 15mm push-in
• Flexible hose: 4 off 15 mm push-in x 200 mm long
• Anti vibration feet

The Motor

• Power Supply: 230/1/50
• Enclosure rating: IP22
• Motor: Induction permanent capacitor auto resetting protective thermotrip
• Power consumption: 245 Watts
• Full load: 1.1 Amps
• Fuse rating: 5 Amps
• Pre wired
• Rating: Int (S3) 30 mins on/30 mins off @ 9 l/min
• Gross weight (packed): 5.3 Kg
