Stuart Turner Monsoon 2 Bar Negative Twin Pump (green) 46345 2.0

Stuart Turner Monsoon 2 Bar Twin Negative Pump

Designed and manufactured to the highest standards, the Stuart Turner Monsoon range is constructed from precision machined brass impellers and brass body stampings.

The Stuart Turner Monsoon 46345 is a negative head shower booster pump used to increase water pressure to a gravity fed hot water system. It can actually be fitted in a positive or negative head situation so no worrying about which to have (for example the water tank can be in the loft or alongside the pump 0m above it and it will work effectively, with no pulsing).

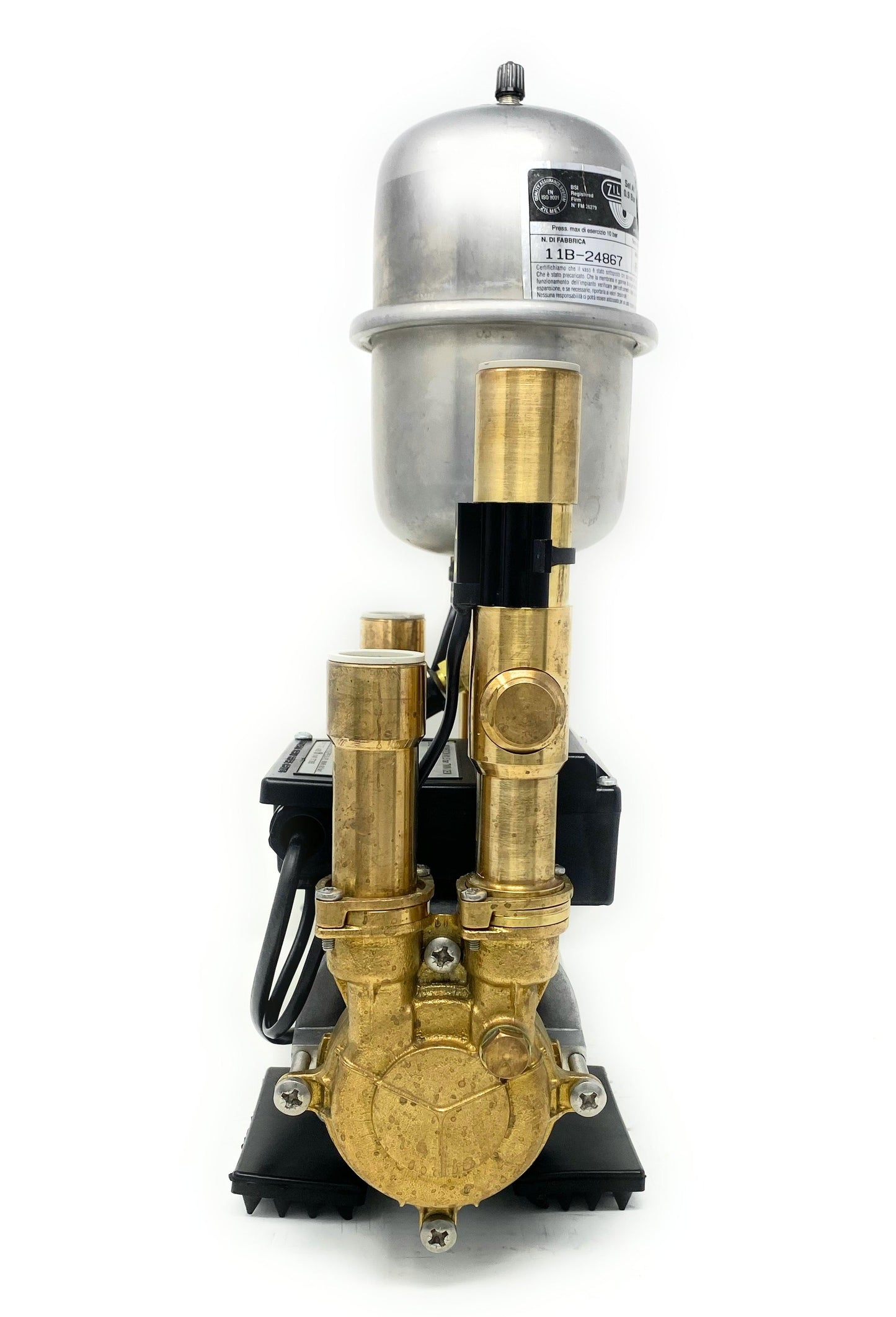

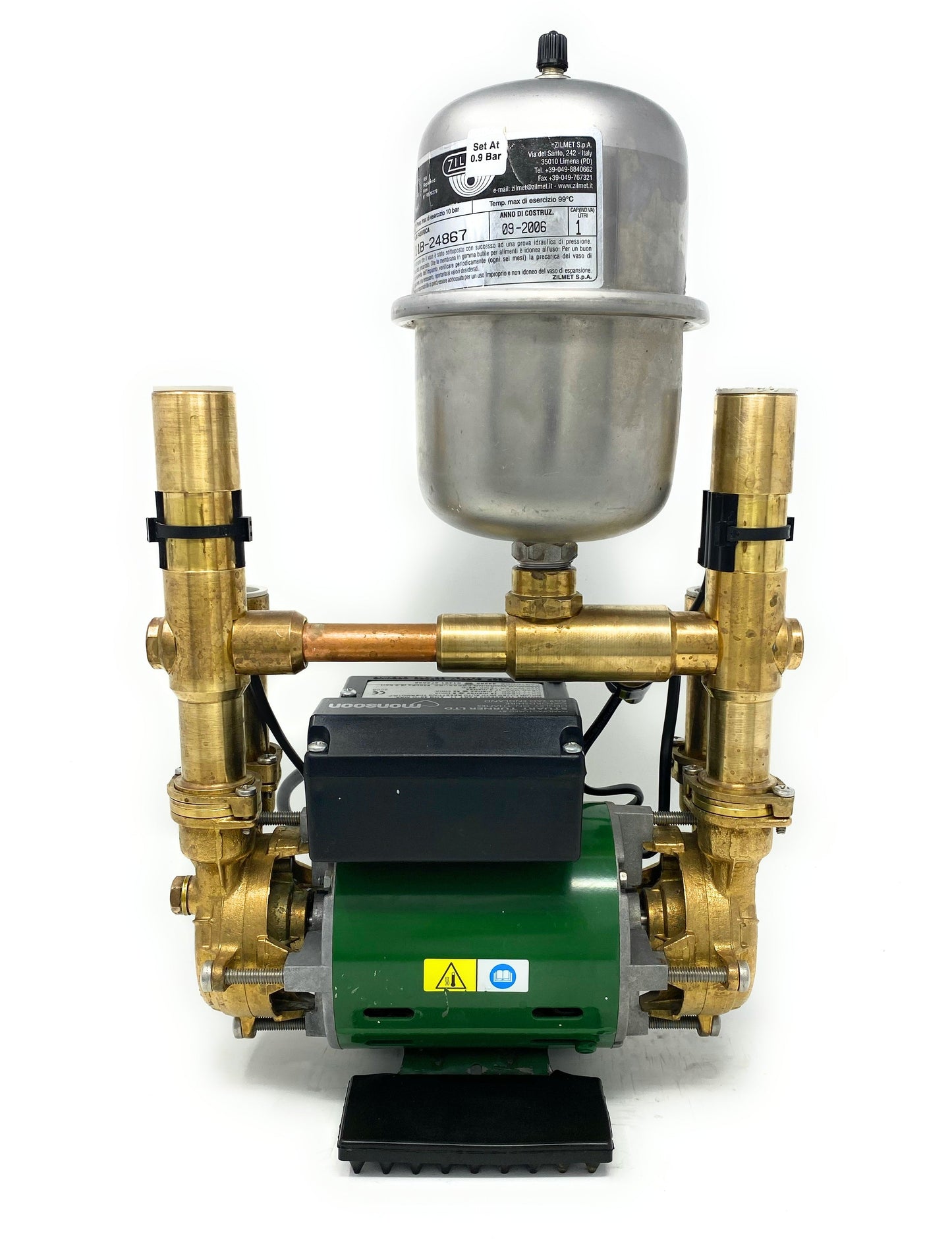

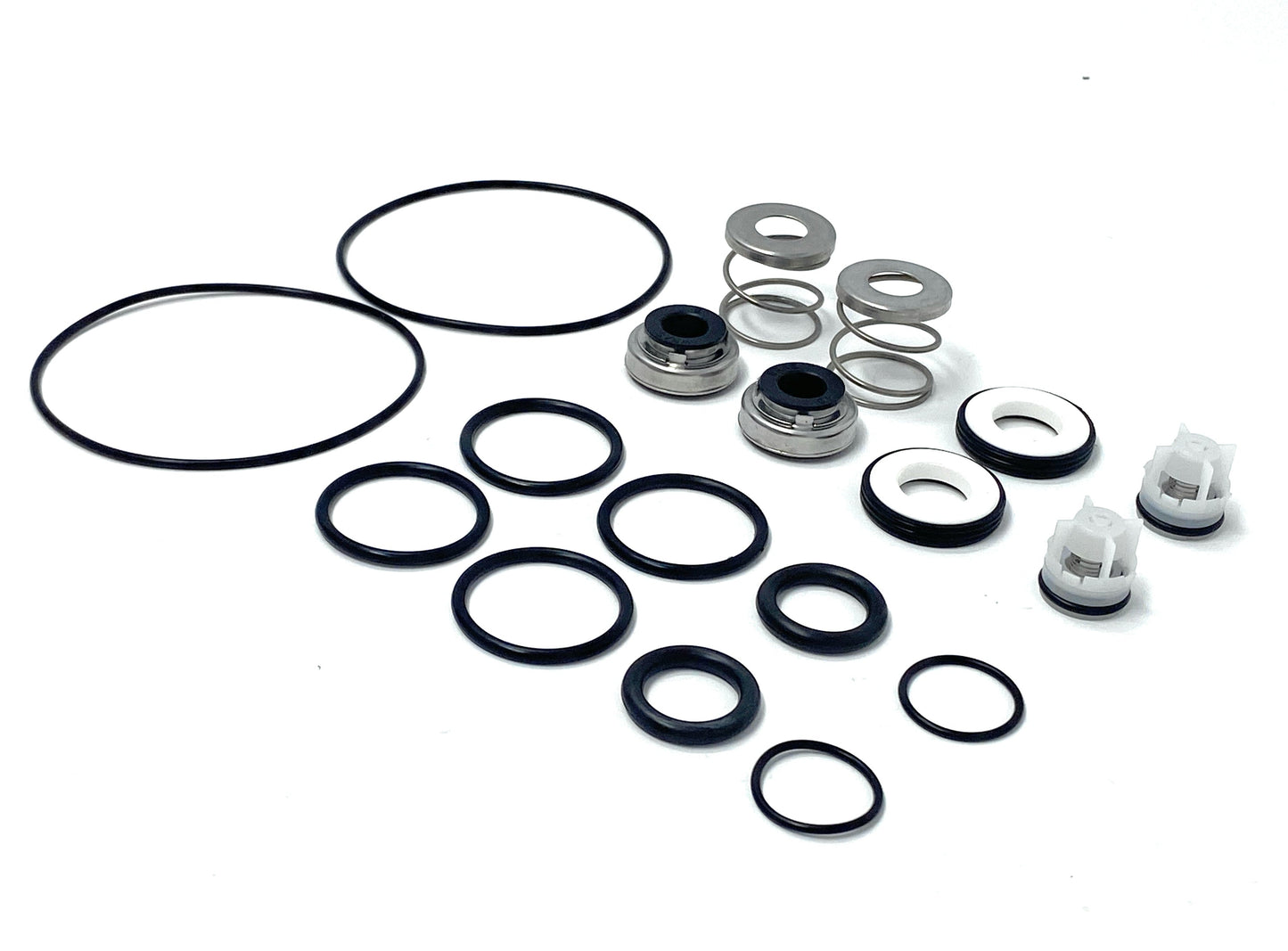

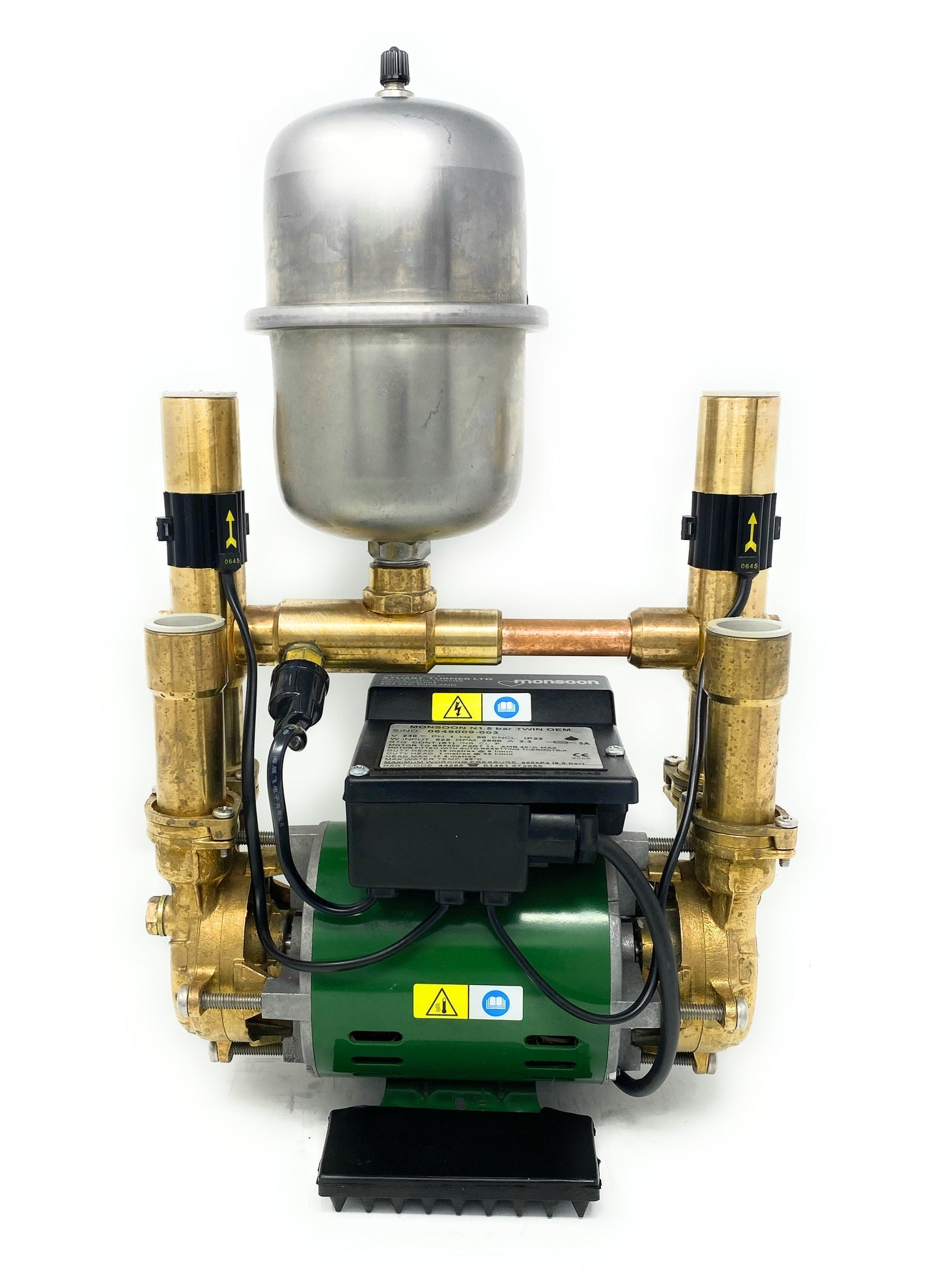

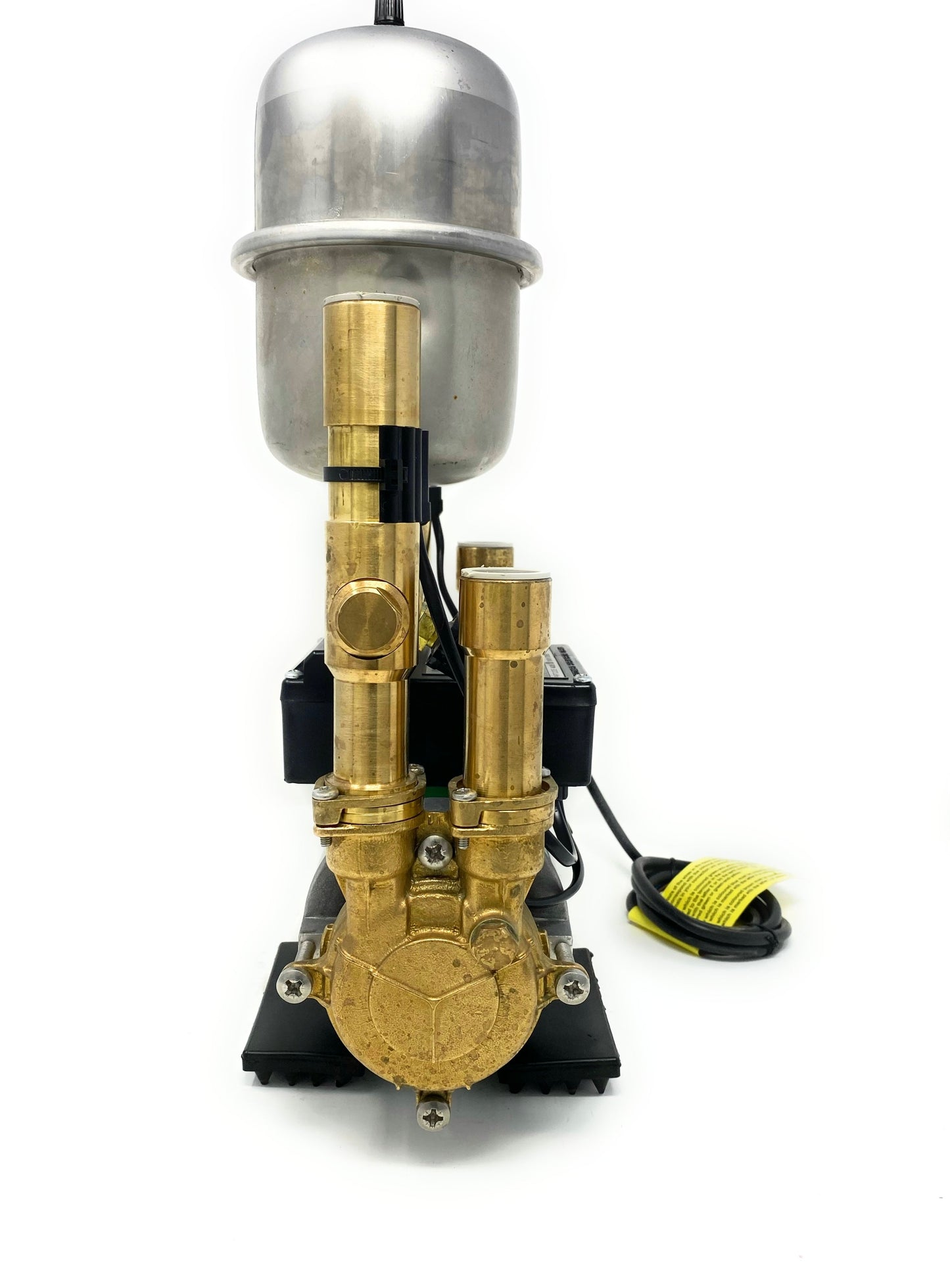

PelhamPumps supply these refurbished pumps fully serviced and tested, complete with new seals and non return valves ready to fit (see images).

Will it fit?

Stuart turner produced the same style and size monsoon pumps up to around 2008- if your pump has a green motor and is 1.5 bar, then this will be a direct replacement. We also have the black motor pumps which superseded this but the pipework arrangement will be slightly different as the size/shape is different.

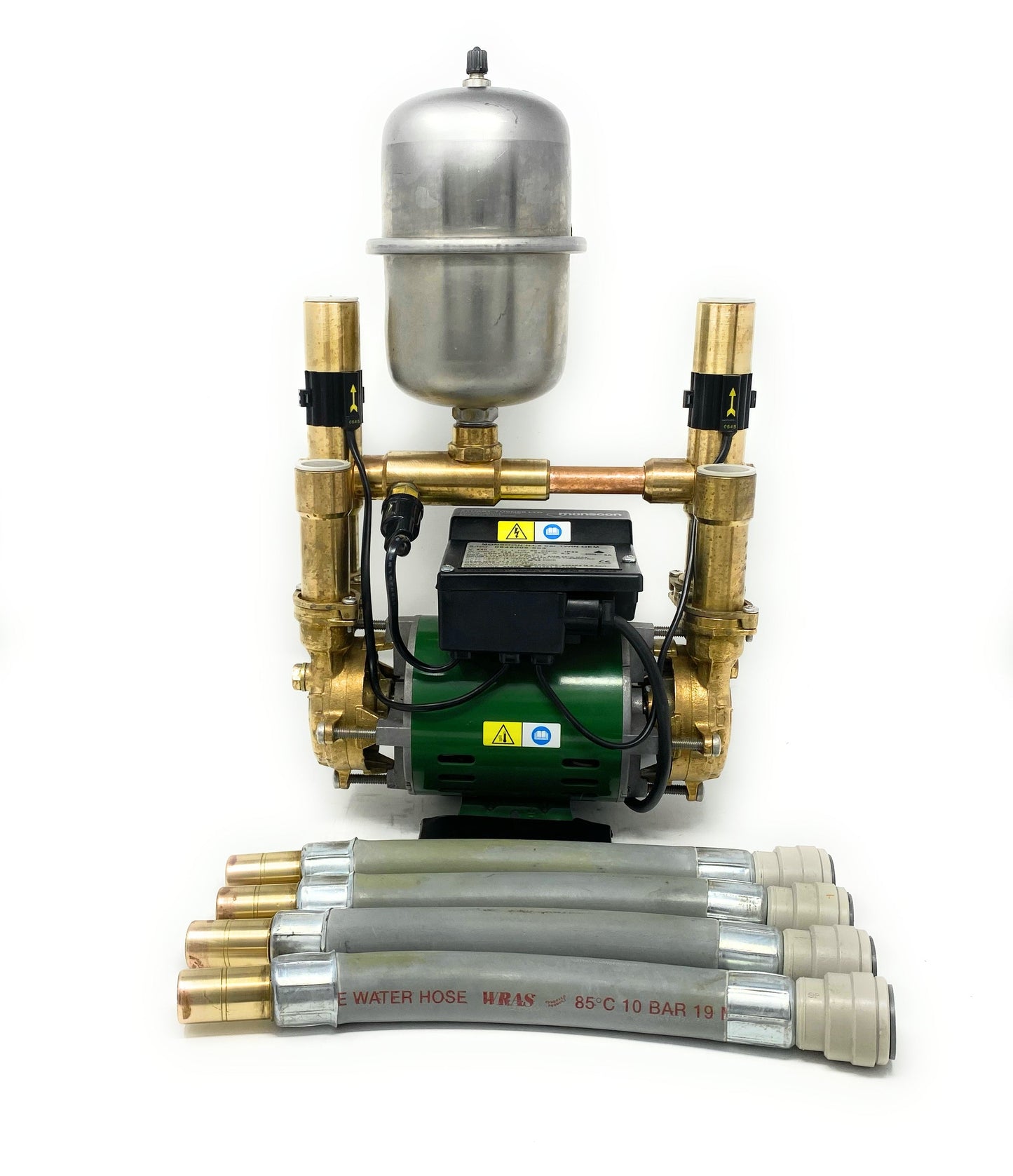

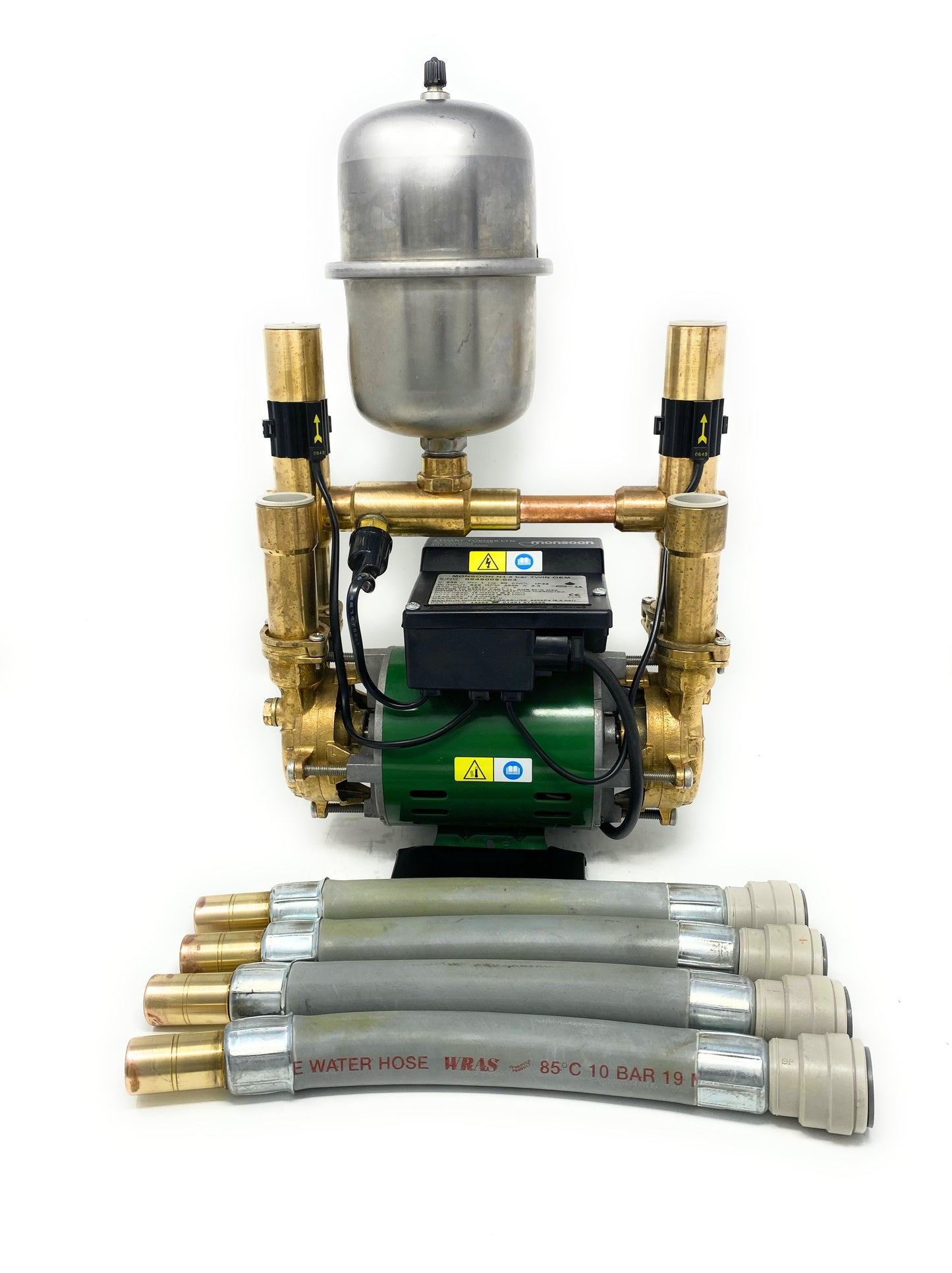

Complete with:

Pump

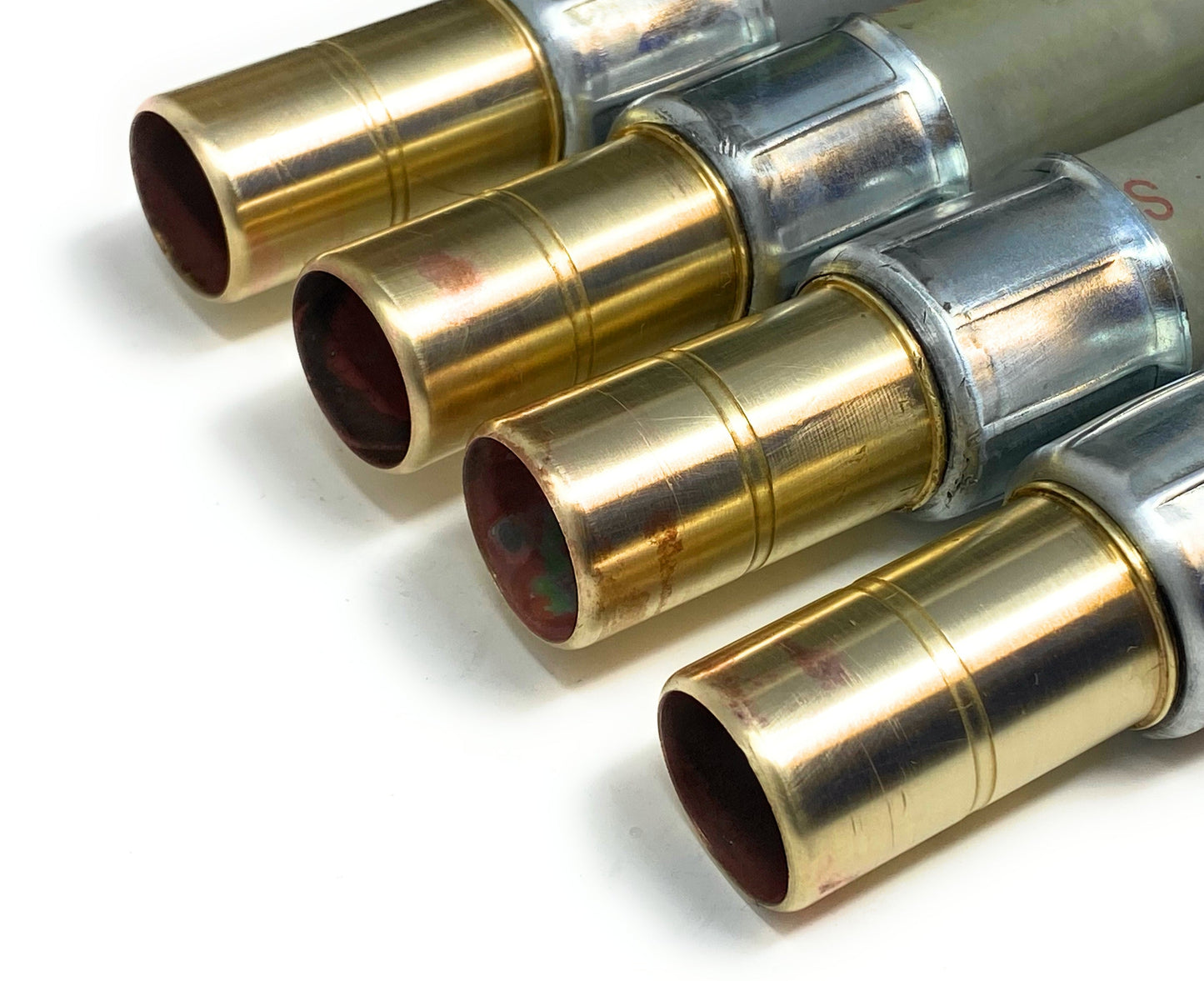

4 x Genuine Stuart Turner push-fit 22mm flexible hoses

Rubber feet for vibration-free noise isolation

User manual

60 day hassle-free warranty

Product Details

• Brand: Stuart Turner

• Product Code: 14-50-46345
• Model: Monsoon 2.0 bar Negative

• Dimensions: (L)271 x (W)225 x (H)283mm
• Electrical Rating: Continuous
• Voltage (V): 230
• Fuse: 5A
• Closed Valve Pressure (bar): 2.0
• Minimum Pipe Size: 22mm (can feed to 15mm household pipework with adaptor- not included)

• Low noise design - quiet induction motor and minimal turbulence pump head
• Continuously rated
• Supplied with 22mm flexible WRAS approved hoses
• Fitted with long-life silicon carbide seals
• Twin brass long-life impellers
• WRAS Approved
• IPX2 water ingress protection
• Regenerative impeller designed to overcome air pockets
• Premium brass pump head and impeller
• Dry run protection built in
