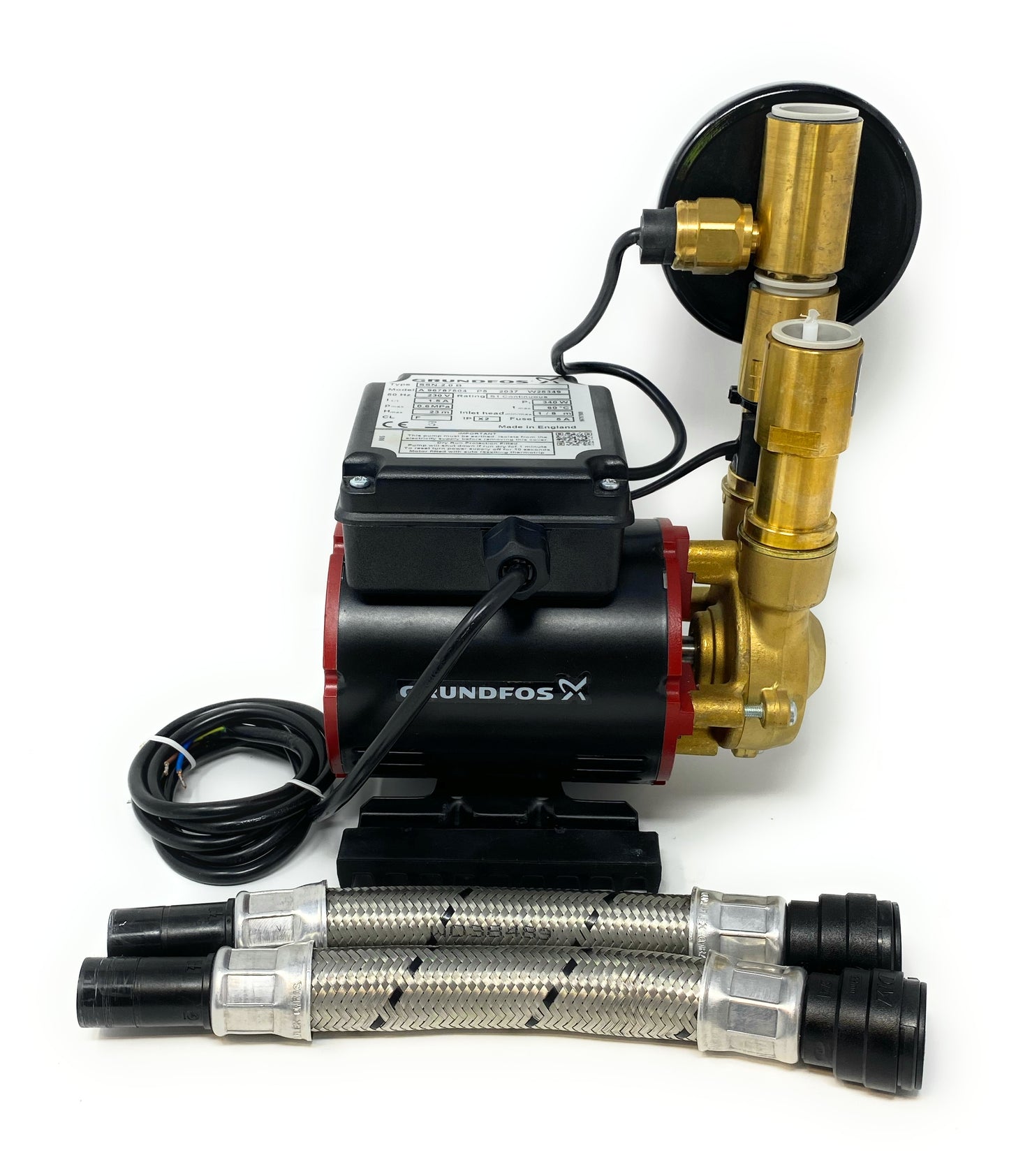

Grundfos SSN 2.0B Single Negative Shower Pump

Grundfos SSN 2.0B Twin Negative Shower Pump & Hoses

Designed and manufactured to the highest standards, the Grundfos SSN range is constructed from precision machined parts.

The grundfos SSN 2.0B Single Negative Shower Pump is a negative head shower booster pump used to increase water pressure to a gravity fed hot water system. It's ideal for boosting water to single/ multiple showers where the outlets are below the cold water tank (when the tank is located in the loft for example). As a single pump it would boost either the cold or the hot feed (a twin pump boosts both).

PelhamPumps supply these refurbished pumps fully serviced and tested, ready to fit.

Will it fit?

The pump will replace any 2 bar single negative pump- you can tell if you have a negative pump by the presence of air tanks attached. These include Stuart Turner showermate, salamander and similar brands.

Complete with:

Pump

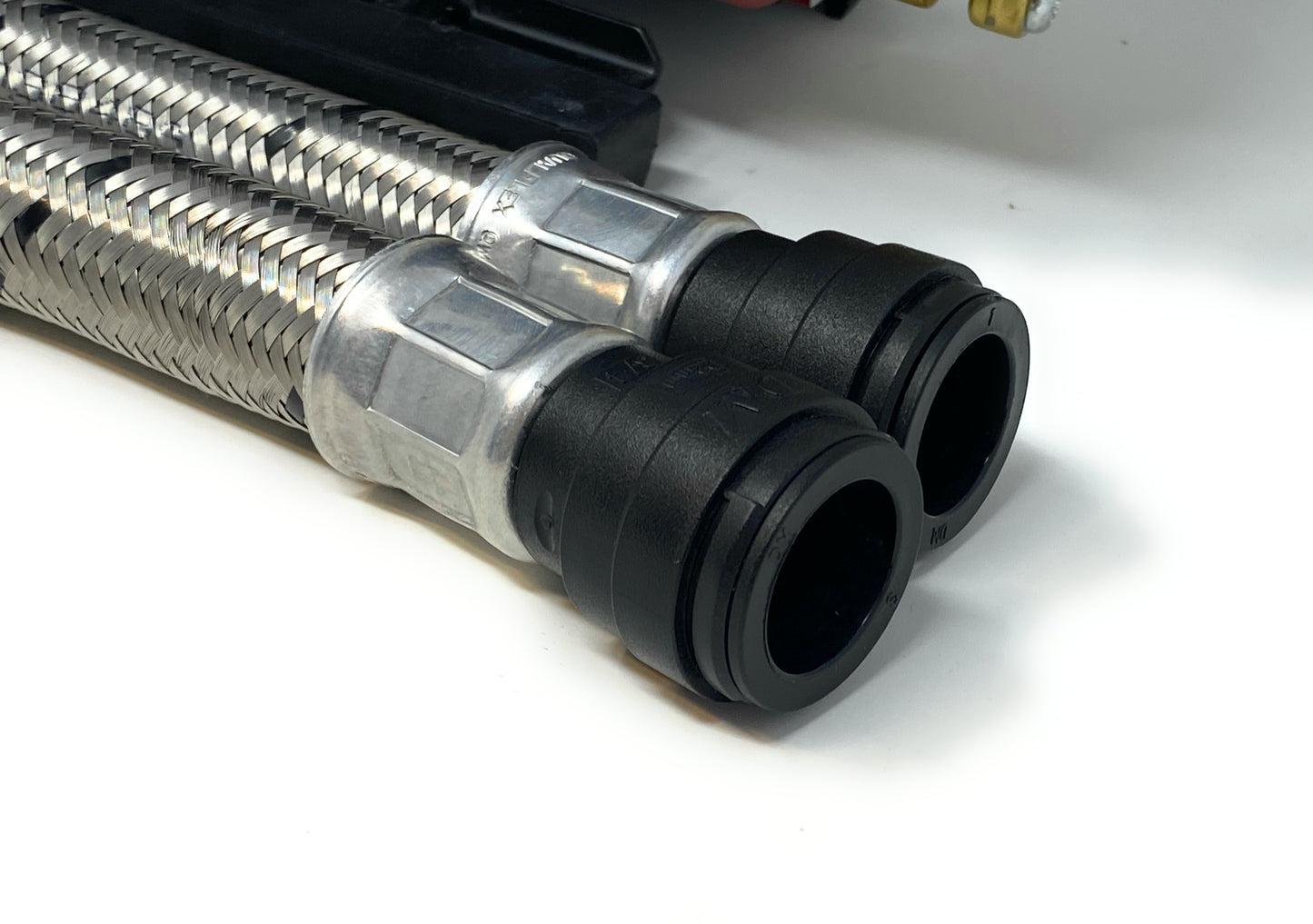

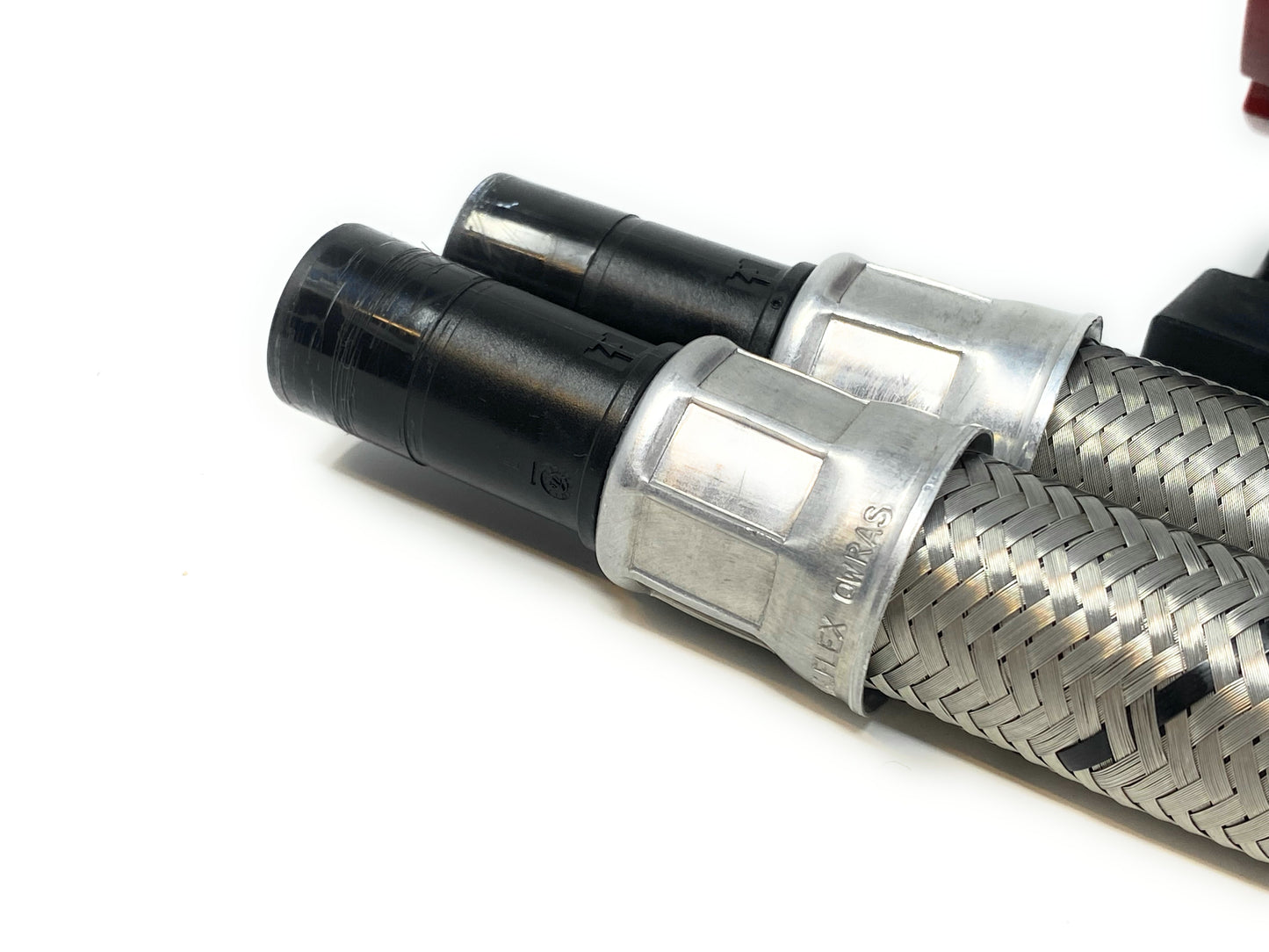

2 x Genuine Grundfos push-fit 22mm flexible hoses

Rubber feet for vibration-free noise isolation

User manual

60 day hassle-free warranty

Product Details

Negative head shower booster pump to increase water pressure to a gravity fed hot water system. For boosting water to single/multiple showers where the outlets are above or below the cold water tank.

Features & Benefits

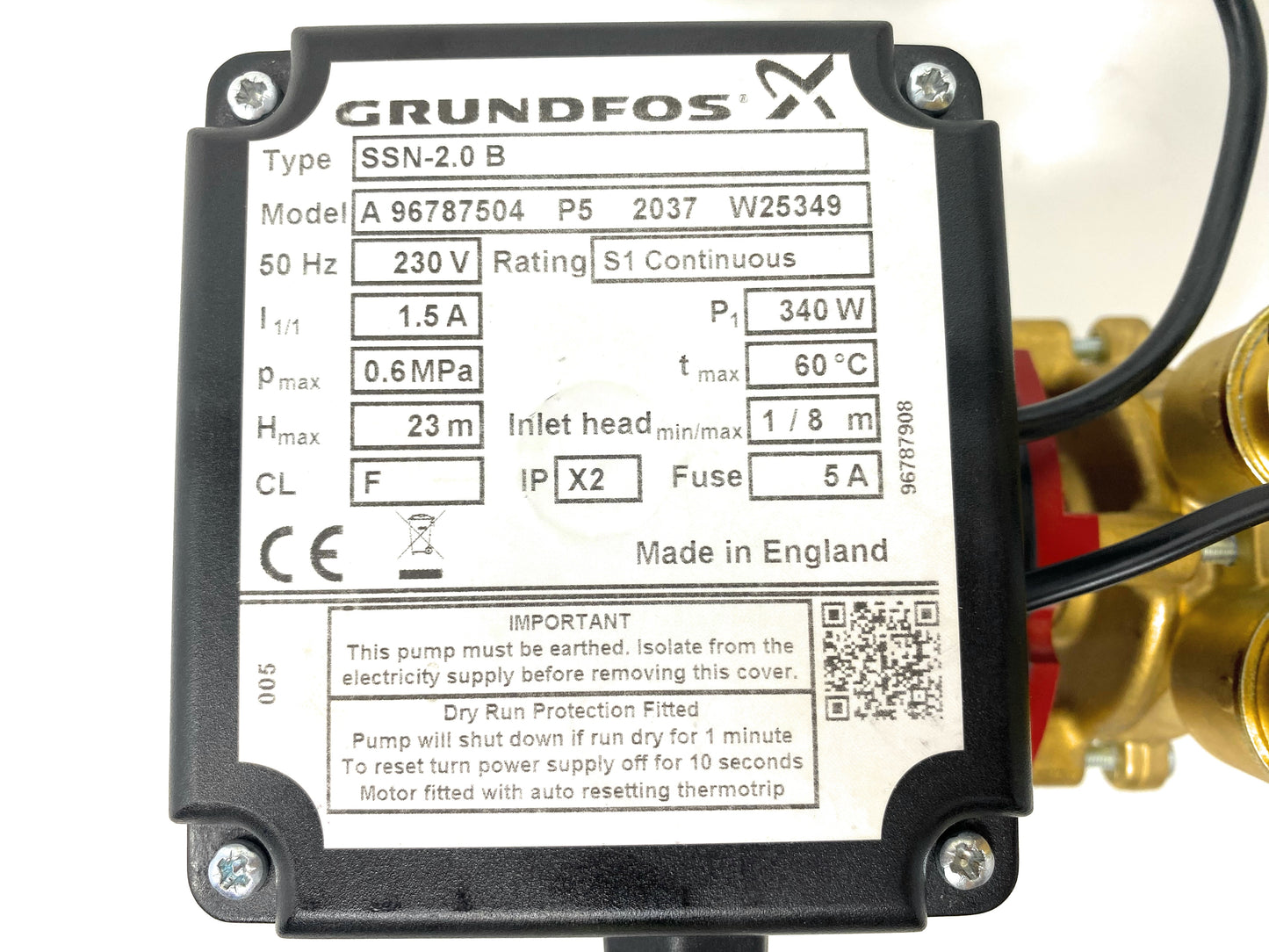

• Product Code: 96787504
• Model: SSN-2.0 B
• Dimensions: (L)195 x (W)225 x (H)283mm
• Electrical Rating: Continuous
• Voltage (V): 230
• Power Input (W): 340
• Fuse: 5A
• Closed Valve Pressure (bar): 2.3
• Max. Flow rate (l/min): 20
• Minimum Pipe Size: 22mm
• Low noise design - quiet induction motor and minimal turbulence pump head
• Continuously rated
• Supplied with 22mm Stainless steel hoses
• Fitted with long-life silicon carbide seals
• Single (SSN) impeller
• WRAS Approved
• IPX2 water ingress protection
• Regenerative impeller designed to overcome air pockets
• Premium brass pump head and impeller
• Auto activation in Negative Head operation
• Dry run protection built in
• Please note that serial numbers may vary from those in the displayed images which are for information only. Exact look and style of this model over the years has varied (as will supplied unit) but specification remains as above.

Any questions feel free to ask
