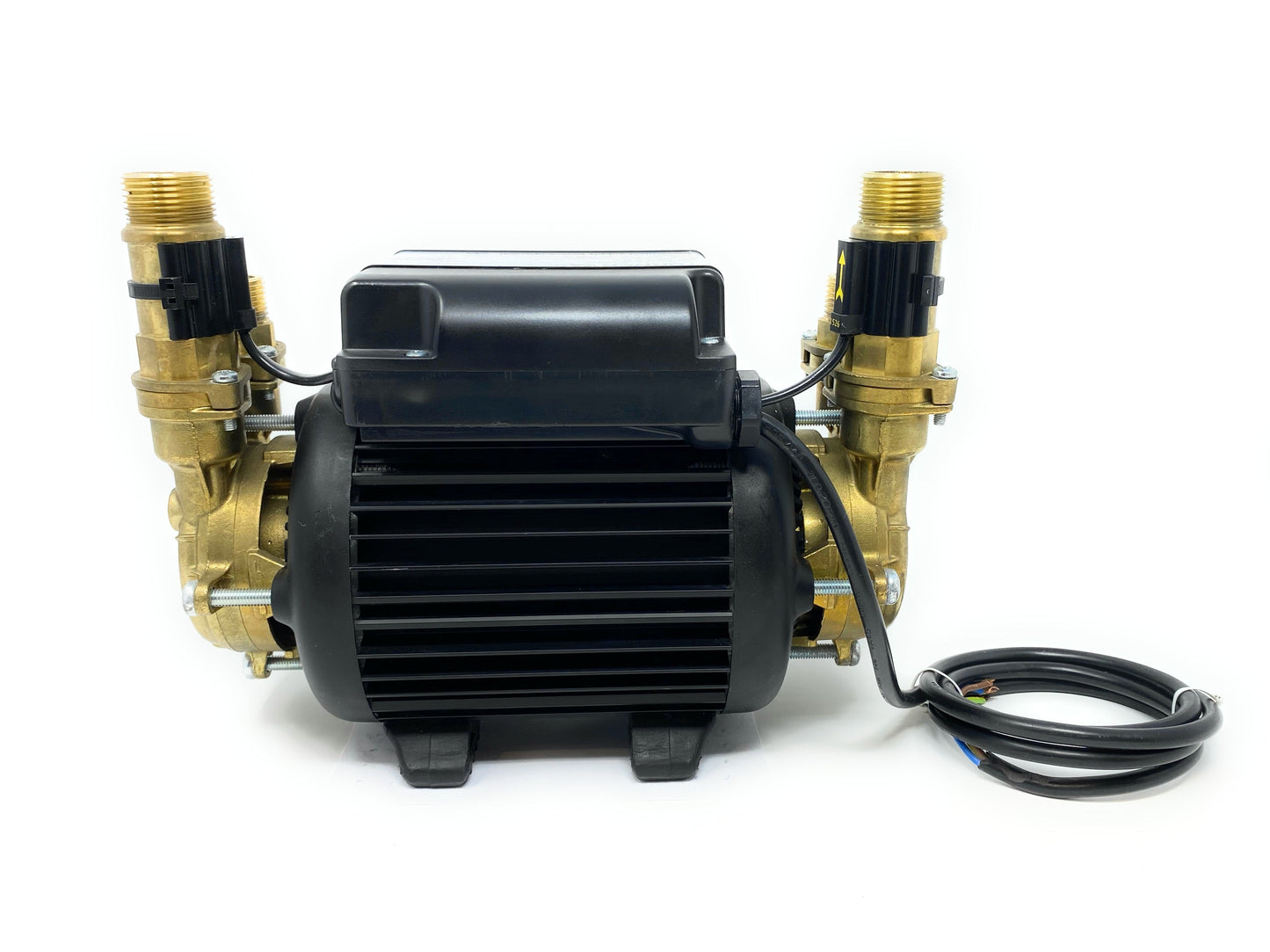

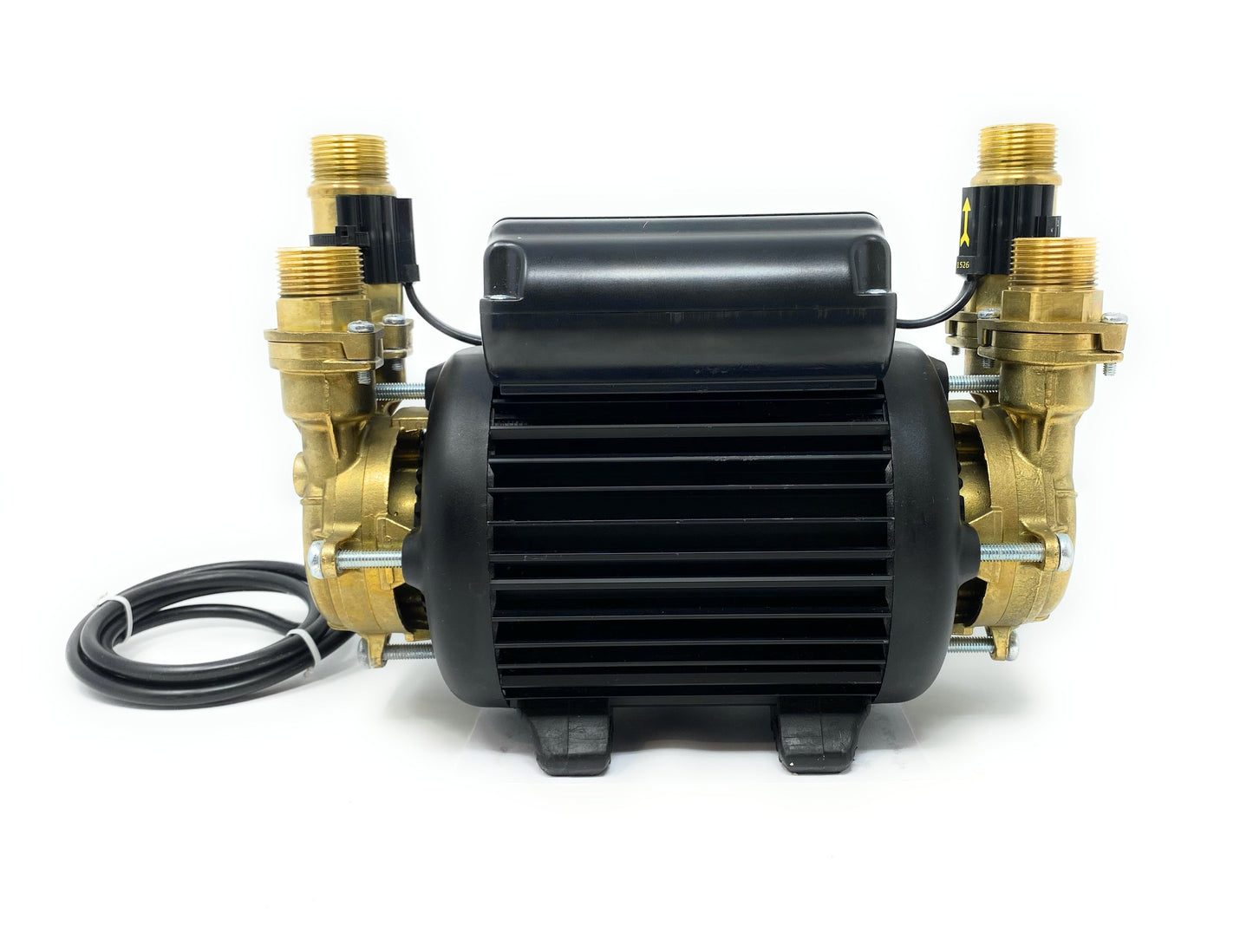

2023 Stuart Turner Monsoon 1.5 Bar Standard Positive Pump (black) 46506

Stuart Turner Monsoon 1.5 Bar Twin Standard Positive Pump

2023 model

Designed and manufactured to the highest standards, the Stuart Turner Monsoon range is constructed from precision machined brass impellers and brass body stampings.

The Stuart Turner Monsoon 46506 is a Positive head shower booster pump used to increase water pressure to a gravity fed hot water system. It's ideal for boosting water to single/ multiple showers where the outlets are below the cold water tank (when the tank is located in the loft for example).

PelhamPumps supply these refurbished pumps as test fitted only, with remainder of the manufacturer warranty to 2028 (see below).

Will it fit?

Stuart turner produced the same style and size monsoon pumps from around 2008 to the present day- if your pump has a black motor and is 1.5 bar, then this will be a direct replacement.

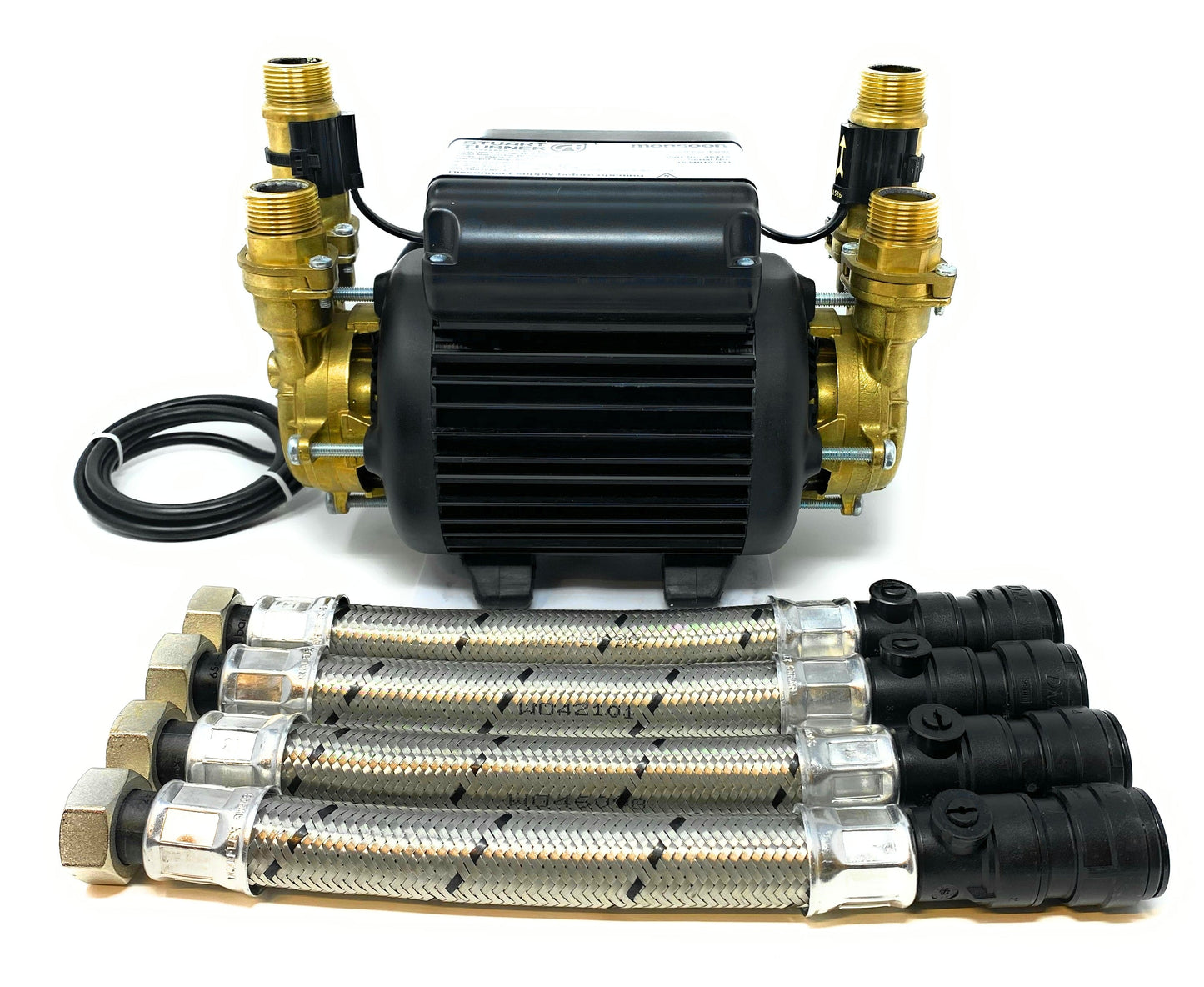

Complete with:

Pump

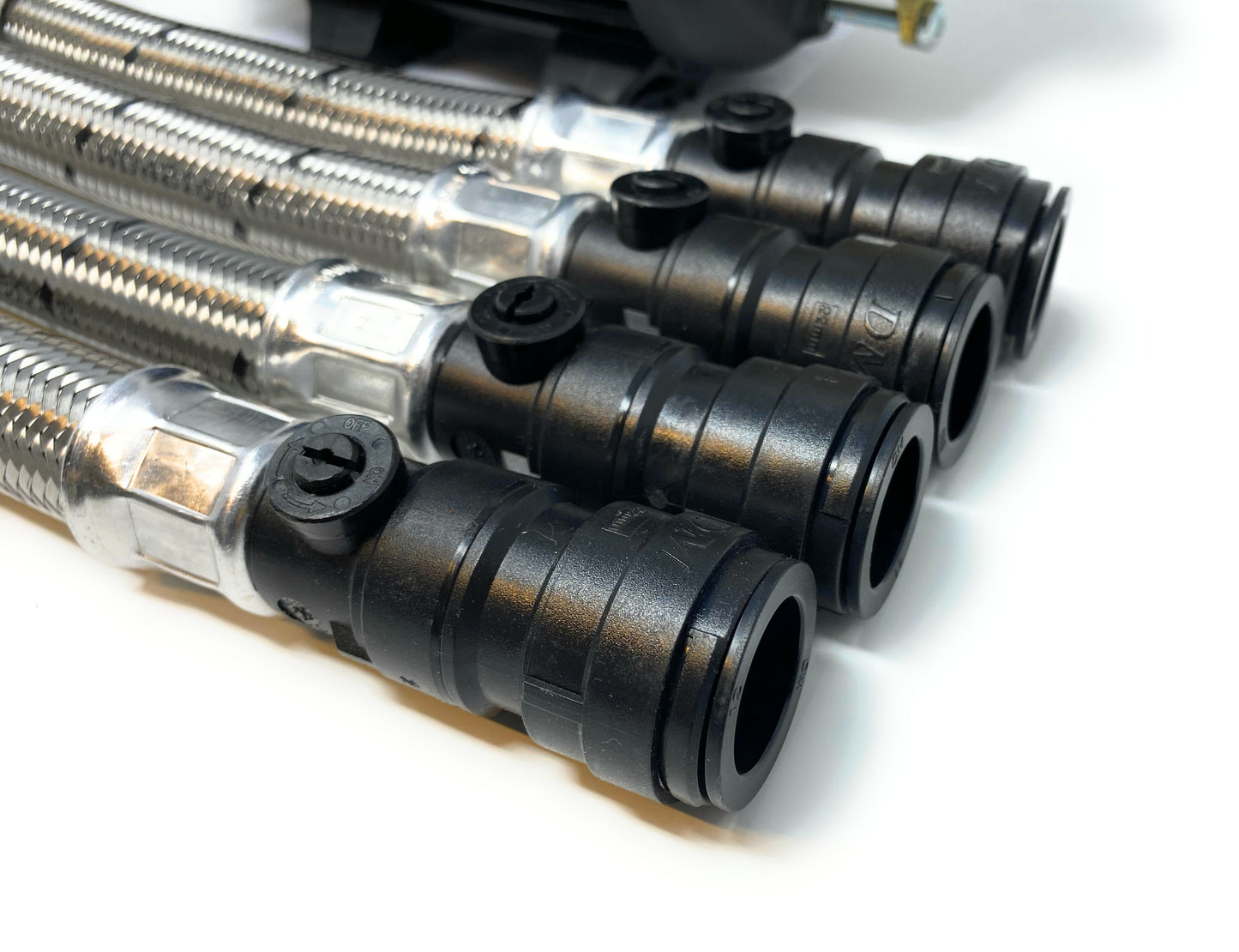

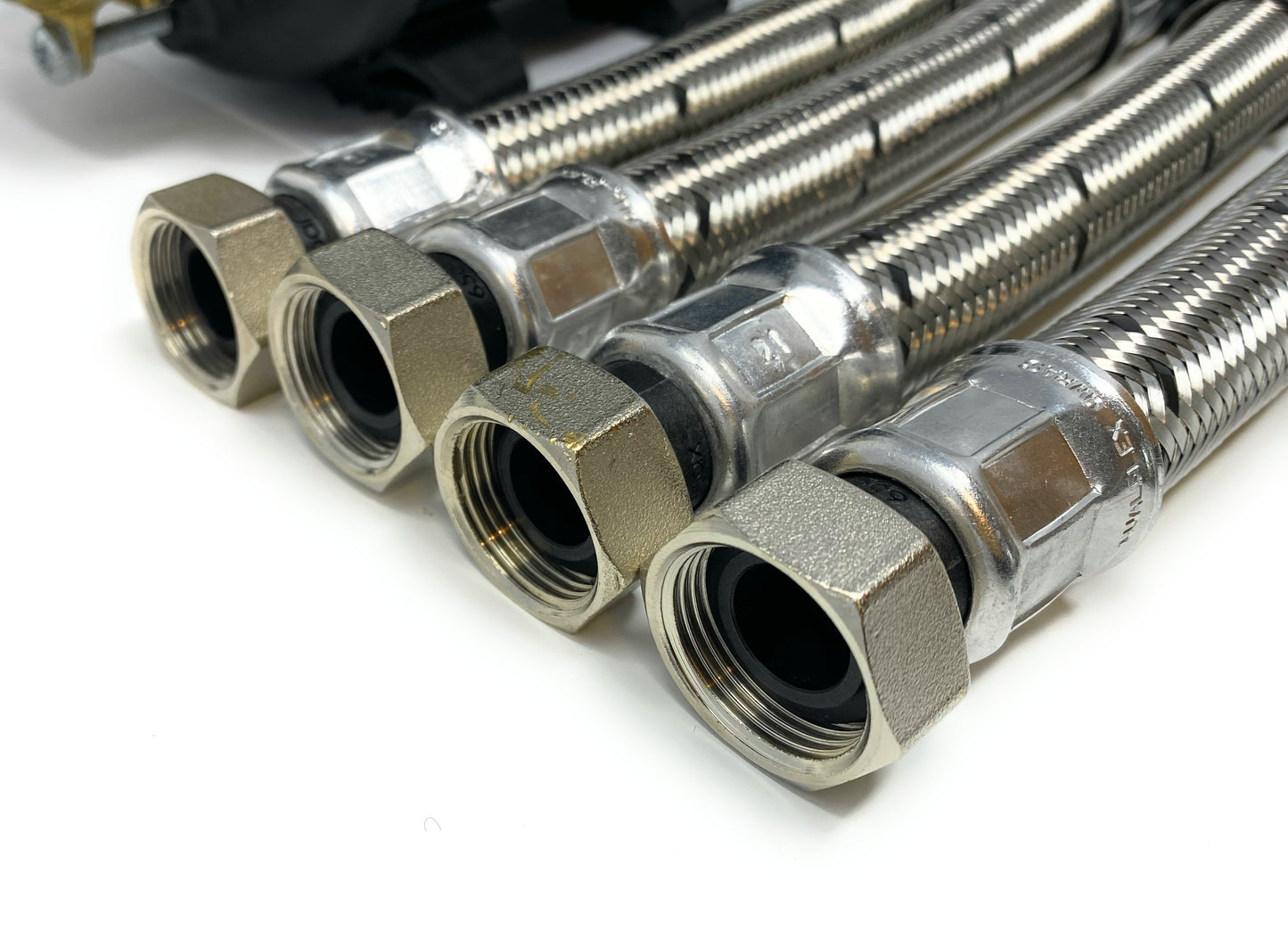

4 x Genuine Stuart Turner push-fit 22mm flexible hoses with isolation valves

Rubber feet for vibration-free noise isolation

User manual

60 day hassle-free warranty

Product Details

• Brand: Stuart Turner
• Product Code: 46506
• Model: Monsoon 1.5 bar positive

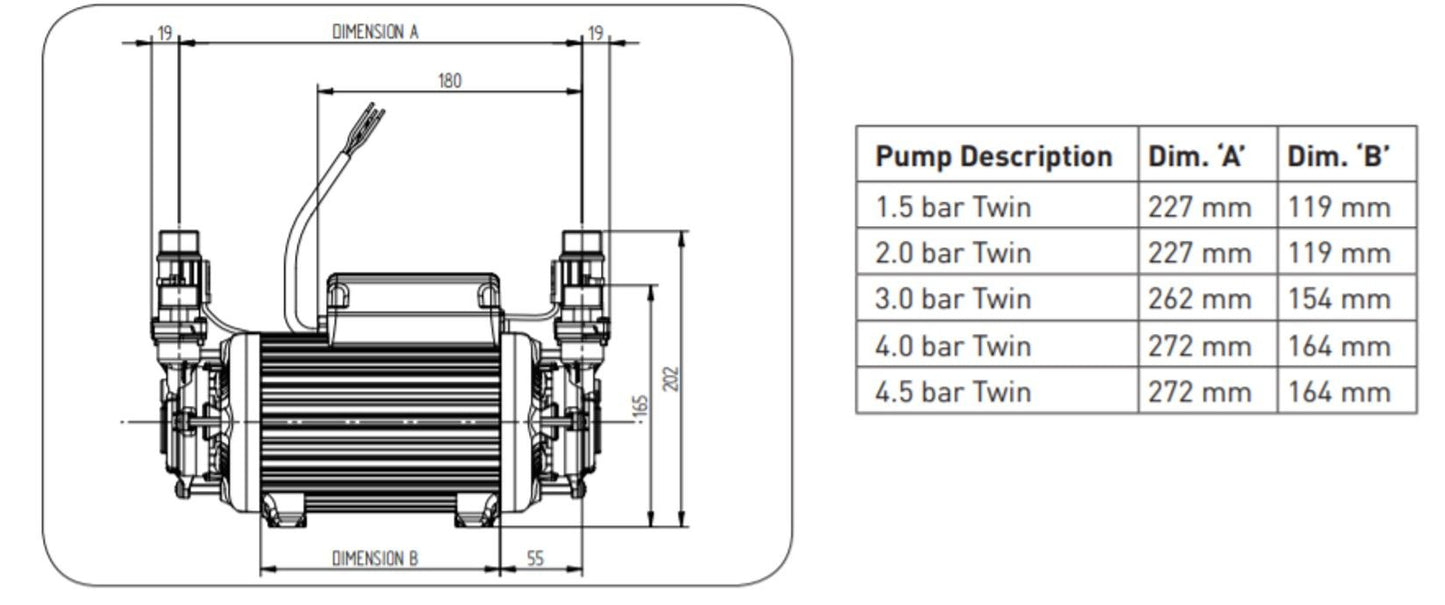

• Dimensions: see image
• Electrical Rating: Continuous
• Voltage (V): 230
• Power Input (W): 425
• Fuse: 5A
• Closed Valve Pressure (bar): 1.5
• Max. Flow rate (l/min): 67
• Minimum Pipe Size: 22mm (can feed to 15mm household pipework with adaptor- not included)
• Low noise design - quiet induction motor and minimal turbulence pump head
• Continuously rated

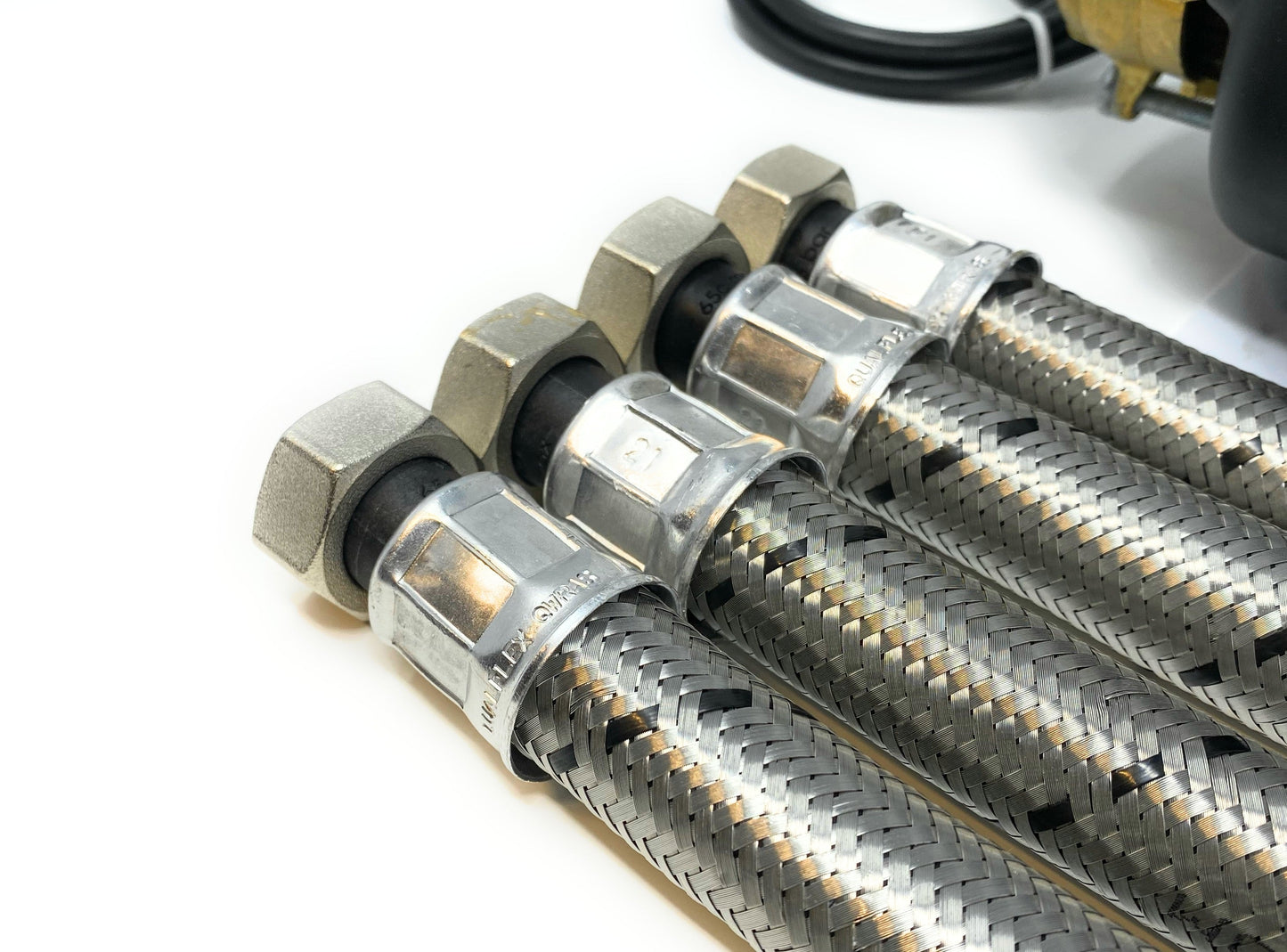

• Supplied with 22mm steel hoses
• Fitted with long-life silicon carbide seals
• Twin brass long-life impellers
• WRAS Approved
• IPX2 water ingress protection
• Regenerative impeller designed to overcome air pockets

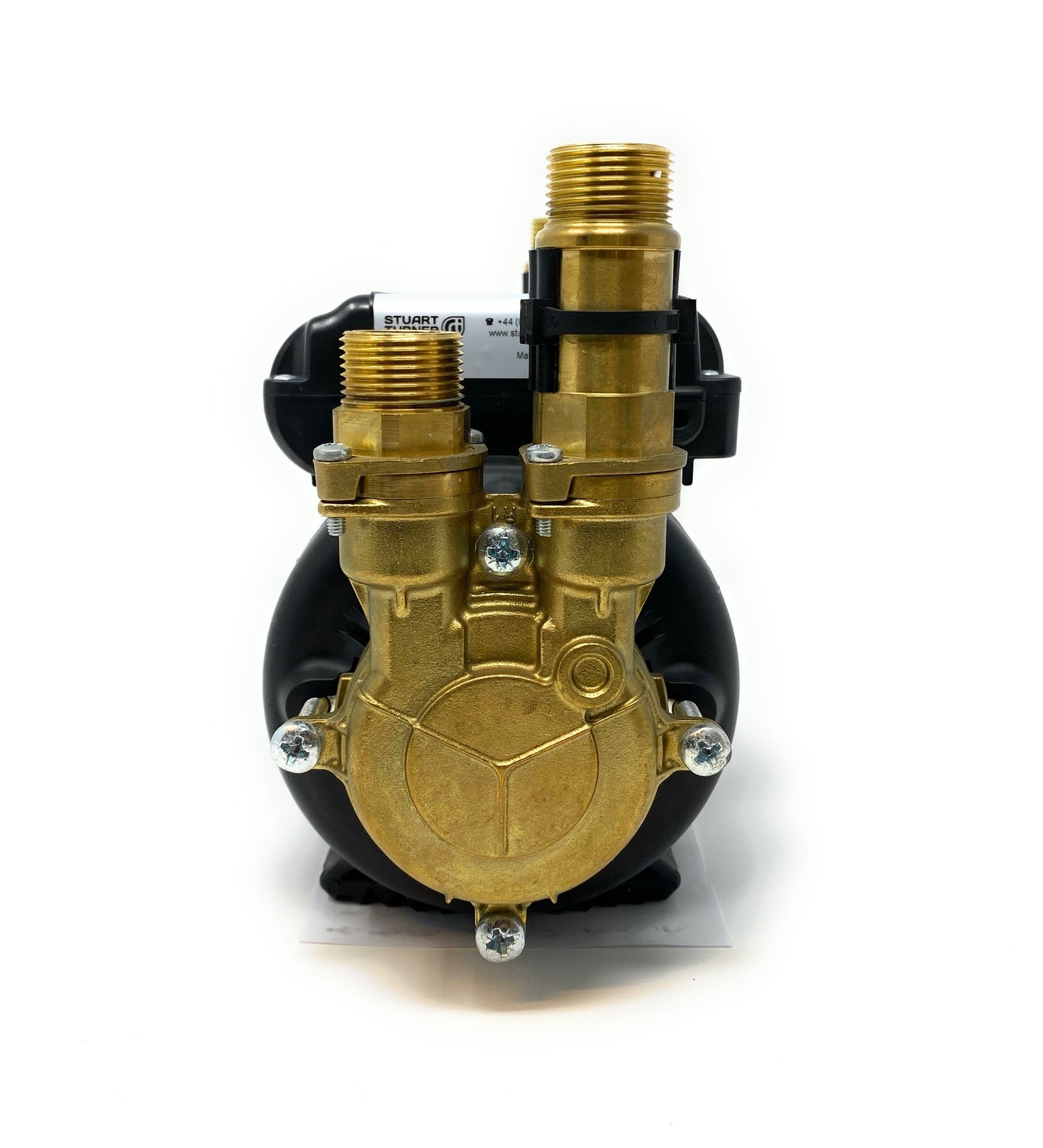

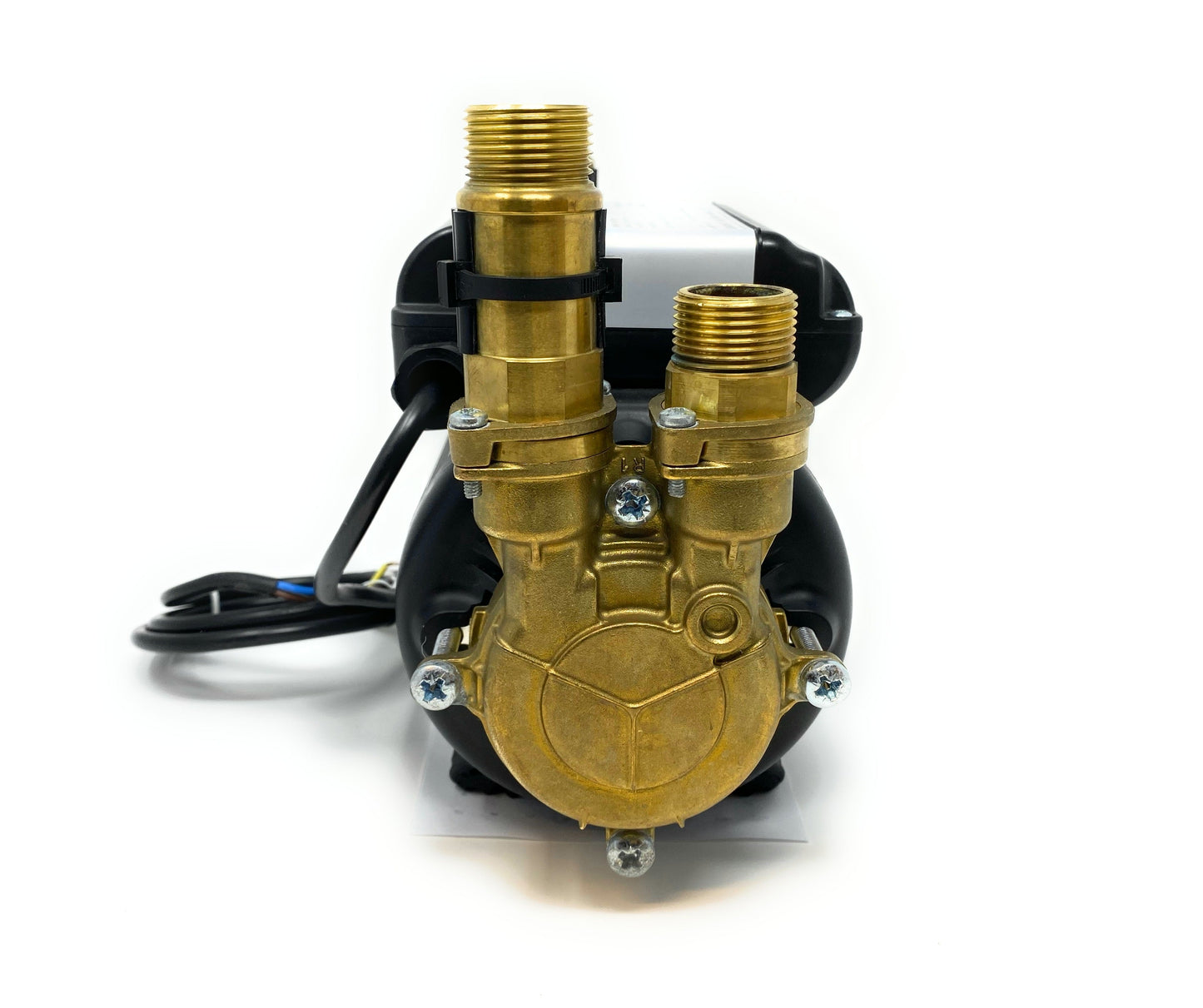

• Premium brass pump head and impeller
• Dry run protection built in

Pump is sold with remainder of 5 year manufacturer warranty to 2028. This can be accessed with Stuart Turner via the serial number on the pump label.
